Developer manual

Table of Contents

• Introduction
• Using dodo
• Exception and error handling
• Deployment configuration
• Logging
• Bytes
• Encryption
• Networking
  • Address
• Sockets
  • Sockets
  • Secure sockets
    • Transport Layer Security (TLS)
    • Setup Certification Authority
• TCPListener / TCPServer
• Persistent data
  • SQLite wrapper
  • KVStore
• Performance

Introduction

Framework to create C++ services for deployment in Docker containers. The framework strives to

• Target is GNU/Linux exclusively.
• Use STL primitives such as std::string for every 'string type' such as a host or file name.
• Application class handles red tape
  • Runtime configuration through yaml file(s).
  • Logging to one or more destinations, console, (rotating) files, syslog.
  • Handling signals (to the container entrypoint, including stop requests)
• Frameworks for additional demands such as
  • Encryption
  • Network and TLS network sockets
  • TCP servers
  • HTTP servers
  • REST servers
  • Database abstractions
    • PostgreSQL
    • MongoDB
    • SQLite
  • Persistent Key-Value store, FIFO and priority queues (based on SQLite)

Using dodo

Include all dodo headers by including dodo.hpp. Before using any of the dodo functionality, call dodo::initLibrary(). Call dodo::closeLibrary() to clean up before program termination.

#include <dodo.hpp>

using namespace dodo;

int main( int argc, char* argv[] ) {
  int return_code = 0;
  initLibrary();
  try {
    network::Address localhost = "127.0.0.1";
    ...
  }
  catch ( const std::exception &e ) {
    cerr << e.what() << endl;
    return_code = 1;
  }
  closeLibrary();
  return return_code;
}

Or use the dodo::common::Application class, as that will take care of

• initializing / unloading the dodo library
• install signal handlers
• parse command line arguments, read environment variables
• read configuration data from the specified configuration file.
• logging

Subclass Application and implement the run method

#include <dodo.hpp>

using namespace dodo;

class MyApp : public common::Application {
  public:

    MyApp( const StartParameters &param ) : common::Application( param ) {}

    virtual int run() {
      while ( !hasStopRequest() ) {
        cout << "Hello world!" << endl;
        std::this_thread::sleep_for(2s);
      }
      return 0;
    }

};

int main( int argc, char* argv[], char** envp ) {
  try {
    MyApp app( { "conf/myapp.yaml", argc, argv, envp } );
    return app.run();
  }
  catch ( const std::exception &e ) {
    cerr << e.what() << endl;
    return 1;
  }
}

Exception and error handling

Dodo throws dodo::common::Exception (or its descendant dodo::common::SystemException) only in exceptional circumstances. Methods that might be expected to fail return a SystemError, a mapping of of system and internal dodo errors which are more convenient in writing program flows.

Among the exceptional error conditions that will throw are

• specifying an non-existing configuration file
• loading an invalid private key
• unable to allocate memory

whilst dodo::common::SystemError is returned when, for example,

• a fqdn fails to resolve
• send / receive timeouts

As dodo::common::Exception itself descends from std::runtime_error, which in turn descends from std::exception, a try / catch block such as

try {
  ...
}
catch ( const std::exception &e ) {
  cerr << e.what() << endl;
}

will also catch any dod exception. dodo::common::Exception instances include the file and line number where the Exception was thrown. Developers may use the throw_Exception() macro's that are used by dodo internally.

The dodo::common::SystemError is declared [[nodiscard]] so that the compiler issues a warning if any function returns a dodo::common::SystemError that is ignored.

Deployment configuration

The dodo::common::Config interface enforces the use of a YAML configuration file with mandatory keys:

dodo:                 # mandatory must be a root key
  common:             # mandatory
    application:      # mandatory
      name: myapp     # an arbitrary name for the application
    logger:           # mandatory
      console:        # at least one of 'console', 'file', 'syslog'
        level: info   # mandatory

A dodo Application configuration requires at least a name ('myapp') and a dodo::common::Logger::LogLevel ('info') and a log destination ('console','file','syslog').

The dodo mandatory key tree can appear anywhere in the YAML as long as dodo is a root node. Other dodo interfaces read from this configuration file as well, such as dodo::network::TLSContext.

Values can either by strings, integers, floating point or boolean values. Some of this data may sensisitive and thus needs to be in encrypted form. To decrypt a secret is required, whose source is specified by the configuration file:

dodo:                           # mandatory must be a root key
  common:                       # mandatory
    application:                # mandatory
      name: myapp               # an arbitrary name for the application
      secret:                   # either 'file' ir 'env'
        file: <mounted secret>  # path to the mounted secret
        env: <name of env var>  # name of the ENV var
    logger:                     # mandatory
      console:                  # at least one of 'console', 'file', 'syslog'
        level: info             # mandatory

sensitive: ENC[chipher:...]     # some sensitive data

Logging

A logging framework is available to write log entries to one or more destinations. The available destinations are

• standard output aka the console of the container (assuming the Application is the entrypoint)
• a directory with a file rotation policy
• the syslog

The logging interface is thread-safe.

The dodo::common::Logger is configured through the dodo::common::Config configuration file. Minimally, the Logger requires

dodo:
  common:
    logger:
      console:
        level: info

which specifies that log entries should be sent to the console (standard out) if they are level dodo::common::Logger::LogLevel::Info or worse.

The other destinations are file and syslog. The logger writes entries to all destinations specified (so console logging cannot be disabled). The file destination requires directory and trailing limits specifications as the log files are rotated automatically. max-size-mib (the maximum size of a file before rotate) and max-file-trail (the maximum number of already rotated log files to keep, oldest removed if exceeded) may be omitted, in which case they have the values as specified below. The directory must be specified and may be relative to the current working directory.

dodo:
  common:
    logger:                       # mandatory
      console:                    # mandatory
        level: info               # mandatory
      file:                       # optional
        level: info               # mandatory
        directory: log            # mandatory
        max-size-mib: 10          # optional default 10
        max-file-trail: 4         # optional default 4

So the space needed for a logging config is max-size-mib * ( max-file-trail + 1 ) MiB.

The dodo::common::Logger::LogLevel levels can be specified in the configuration in either a short or longer format, but the shorter format will be used in log entries written to console or file. So level: fatal and level: FAT are equivalent.

short	long	syslog mapping	Release build
FAT	fatal	2 CRITICAL	Included in code
ERR	error	3 ERROR	Included in code
WRN	warning	4 WARNING	Included in code
INF	info	6 INFORMATIONAL	Included in code
STA	statistics	6 INFORMATIONAL	Included in code
DBG	debug	not logged	Excluded from code
TRC	trace	not logged	Excluded from code

So it is not possible to debug or trace to the syslog, and debug and trace loglevels have no effect in release builds.

To log messages in the code, use the log_Fatal through log_Trace macros (all include an implicit Puts() so streaming syntax can be used to easily log different data-types). For example

log_Debug( "connection from " << address.AsString() );
log_Error( "receive timeout on socket " << socket.getFD() );

In release builds (-DNDEBUG) the log_Debug and log_Trace macros reduce to void and are thus eliminated from the code, and the above fragment would reduce to

log_Error( "receive timeout on socket " << socket.getFD() );

To configure the syslog destination

dodo:
  common:
    logger:                       # mandatory
      console:                    # mandatory
        level: info               # mandatory
      syslog:                     # mandatory
        level: warning            # mandatory
        facility: 1               # optional default 1

The syslog facility should be either 1 for user-level messages or in the range local0 to local7 or 16 through 23 as the remaining values are reserved for other use.

Bytes

Dodo provides the dodo::common::Bytes class as a primitive used by other interfaces suchs as dodo::network::BaseSocket, dodo::common::DataCrypt, dodo::network::protocol::http::HTTPResponse, dodo::persist::sqlite::Query and so on. A Bytes object is just a sequence of dodo::common::Octet (an alias for uint8_t, a group of 8 bits). The class allows to append other things (C++ primitives, and other Bytes) and handles memory management internally. It provides functions to encode / decode to base64 strings, or generate random data through the openssl library.

A difference between Bytes and a 'string' is that Bytes are not zero terminated, nor does it attribute any special meaning to any Octet value. This means that a Bytes object is not always translatable to a 'string' (the Bytes may include intermediate zeros), but any string can always be represented by a Bytes object.

Encryption

Dodo provides the dodo::common::DataCrypt interface to encrypt and decrypt secret dodo::common::Bytes, such as a passphrase in a YAML configuration file. The DataCrypt interface uses a formatted string

$ echo -n "Hello world" | bin/cryptstr -e -c EVP_aes_256_gcm -kval:secret
ENC[cipher:EVP_aes_256_gcm,data:8GIwcMJW8YKNHwQ=,iv:CdwuYqQ0u/cLsI0EGAiA+A==,tag:s1YHIH3/6x1G/IpVLXWsrg==]

The format specifies all information to decrypt the data (except obviously the key aka passphrase), and uses openssl encryption internally. The cryptstr tool is provided in the dodo repository. To decrypt the above data in appliction code, do something like

const std::string &key = whatever;
const Bytes src = "ENC[cipher:EVP_aes_256_gcm,data:3r+TAD2bmQNXE4+t,iv:TSq6XIUI3rdzAphofSTUJg==,tag:z+T1aC99QaJ8G77+lypD1w==]";
Bytes dest;
DataCrypt::decrypt( key, src, dest );

Networking

The networking framework is provided by the dodo::network namespace.

Address

Sockets connect to or listen on Address objects. The Address class allow to program for both ipv4 and ipv6 transparently. For example, the following sequence resolves the name "httpbin.org" to either an ipv4 or ipv6 address, whatever the server and client support.

using namespace dodo;

network::SocketParams sock_params = network::SocketParams( network::SocketParams::afUNSPEC,
                                                           network::SocketParams::stSTREAM,
                                                           network::SocketParams::pnTCP );
std::string canonicalname;
std::string host = "httpbin.org";
network::Address address;
common::SystemError error = network::Address::getHostAddrInfo( host, sock_params, address, canonicalname );

Sockets

Both dodo::network::Socket and dodo::network::TLSSocket classes implement the from dodo::network::BaseSocket interface.

Sockets

Dodo provides the dodo::network::Socket interface to manage network sockets.

Secure sockets

Dodo supports TLS through dodo::network::TLSContext and dodo::network::TLSSocket.

Transport Layer Security (TLS)

The core principle to asymmetric cryptography is a mathematical mapping that is cheap to compute in one direction, and computationally infeasible in the other. Typically, the ease of muliplying primes and the difficulty in finding prime roots of integers is applied.

In an asymmetric communication handshake, each endpoint has a private key, a secret filled with as much entropy as possible, typically stored as a file which is (or should be) in turn encrypted and protected by a passphrase. The private key is and must not be shared with anyone. The passphrase redces the risk when the private key leaks, and must not be allowed to be empty.

The private key includes public bits that map uniquely to a public key, which can thus be extracted from the private key. The private and its public key share the same modulus, so a public key can be matched to a private key and other artifacts containing that public key, such as a certificate or certificate signing request.

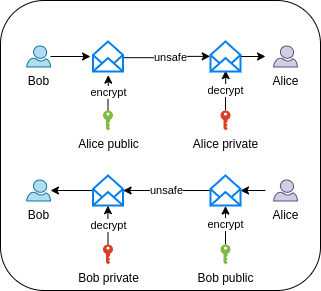

In secure communication, the public key encrypts and the private key decrypts. So data encrypted with a public key, can only be decrypted by the owner of the matching private key.

In digital signing, the signature is encrypted with the private key of the signer, and decrypted with the public key of the signer.

TLS is a secure communication protocol that use an asymmetric cryptographic handshake to negotiate and share a session key, which will be used for both encryption and decryption.

In TLS configuration and deployment the following document types are used (see dodo::network::X509Common::X509Type)

• The private key.
• A certificate signing request (CSR) which is a X.509 document (dodo::network::X509CertificateSigningRequest), typically stored as a PEM file, and comprises
  • the public key
  • data describing the owner identity (often the FQDN)
  • defined limits to its validty (such as expiry by date)
• A certificate, which is a X.509 document (dodo::network::X509Certificate) typically stored as a PEM file, and comprises
  • the public key as in the CSR.
  • data describing the owner as in the CSR.
  • The digital signature of a Certificate Authority (CA) that has verified the CSR to be correct (the FQDN belongs to the owner described in the data).

A CA is a chain of certificates anchored to a trust anchor, which is a self-signed certificate. Such trust anchors typically create intermediate certificates which are used to sign CSR's. The trust entails that the CA has established that the private key belongs to the identity specified in the certificate with matching public key.

Operating systems or software suites are often deployed with well known and widely trusted CA's that verify identity against network names.

The context of a TLS connection is handled by the dodo::network::TLSContext class. It is configured with a private key, a certificate and a truststore. The same TLSContext can be used by multiple dodo::network::TLSSocket objects for multiple connections.

TLS evolved through protocol versions, version 1.0 is deprecated (as are its predecessors, SSLv2 and SSLv3).

• TLS 1.0 : Deprecated and not supported
• TLS 1.1 : Deprecated but still supported
• TLS 1.2 : Widely used
• TLS 1.3 : Best

Dodo allows to specify the lowest acceptable TLS version:

• dodo::network::TLSContext::TLSVersion::tls1_1 Accept TLS 1.1 or better
• dodo::network::TLSContext::TLSVersion::tls1_2 Accept TLS 1.2 or better
• dodo::network::TLSContext::TLSVersion::tls1_3 Accept TLS 1.3 or better

In order to verify a peer certificate, there is dodo::network::TLSContext::PeerVerification

• dodo::network::TLSContext::PeerVerification::pvVerifyNone - Use no peer verification. The connection is private (encrypted), but information is shared with an unknown peer identity (like a man in the middle).
• dodo::network::TLSContext::PeerVerification::pvVerifyPeer - The client verifies that peer offers a certificate that is signed by an entity trusted by the client. Note that this merely proves the server has a copy of a trusted certificate - but for the peer to decrypt messages sent by the advertised public key, the peer must also have the private key to decrypt.
• dodo::network::TLSContext::PeerVerification::pvVerifyFQDN - In addition to pvVerifyPeer, the client verifies that the target FQDN of the server either matches its CN (common name) or one of its SAN entries.

On top of the verification methods provided by openSSL, one can obviously add additional checks, such as matching the fingerprint of the peer's certificate against a whitelist, inspecting additional SAN fields and so on.

Trust stores

Operating systems are typically configured with a truststore, on this Linux box a directory with certificates:

$ ls -1 /etc/ssl/certs/*Nederland*
/etc/ssl/certs/Staat_der_Nederlanden_EV_Root_CA.pem
/etc/ssl/certs/Staat_der_Nederlanden_Root_CA_-_G2.pem
/etc/ssl/certs/Staat_der_Nederlanden_Root_CA_-_G3.pem

EV is short for Extended Validation Certificate, which certifies that the legal identity of the certificate's owner has been verified.

Certificates can be inspected with

$ openssl x509 -in /etc/ssl/certs/Staat_der_Nederlanden_EV_Root_CA.pem -text -noout
Certificate:
    Data:
        Version: 3 (0x2)
        Serial Number: 10000013 (0x98968d)
        Signature Algorithm: sha256WithRSAEncryption
        Issuer: C = NL, O = Staat der Nederlanden, CN = Staat der Nederlanden EV Root CA
        Validity
            Not Before: Dec  8 11:19:29 2010 GMT
            Not After : Dec  8 11:10:28 2022 GMT
        Subject: C = NL, O = Staat der Nederlanden, CN = Staat der Nederlanden EV Root CA
        Subject Public Key Info:
            Public Key Algorithm: rsaEncryption
                RSA Public-Key: (4096 bit)
                Modulus:
                  ...

The modulus is shared between the private and public key (which is included in the certificate) and allows to match public keys and private keys as pairs (equality is inferred from matching sha256 hashes in this example)

# for a private key
$ openssl rsa -noout -modulus -in server_private.pem | openssl sha256
(stdin)= 6158bf2941f9f2bd10d35f254cfa035f2c33bd36412beaf8427e51c99290b451

# for a public key
$ openssl rsa -noout -modulus -pubin -in server_public.pem  | openssl sha256
(stdin)= 6158bf2941f9f2bd10d35f254cfa035f2c33bd36412beaf8427e51c99290b451

# for a CSR
$ openssl req -noout -modulus -in server_csr.pem | openssl sha256
(stdin)= 6158bf2941f9f2bd10d35f254cfa035f2c33bd36412beaf8427e51c99290b451

# for a public key certificate
$ openssl x509 -noout -modulus -in certificate.pem | openssl sha256
(stdin)= 6158bf2941f9f2bd10d35f254cfa035f2c33bd36412beaf8427e51c99290b451

the output of the above commands proves that these public key artifacts all originate in the same private key.

Instead of the system trust store, a custom truststore can be used to fine-tune the trust. This allows to either limit the trust or trust one's own CA - bypassing the need to buy the certificate produced from a CSR.

Custom truststores are loaded from PCKS12 files through dodo::network::TLSContext::loadPKCS12TrustStore.

Keystore

A keystore comrpises the private key and the (signed) certificate of the identity. It can be loaded with either dodo::network::TLSContext::loadPEMIdentity or dodo::network::TLSContext::loadPKCS12KeyStore.

Server Name Indication

Server Name Indication is a TLS extension that sends the client-intended target FQDN to allow the server to present the correct certificate - a certificate to which that target FQDN matches either the CN or one of the SANs.

Currently, SNI sends the target FQDN unencrypted, which means intermediates know the destination (and can act upon it, such as censoring). SNI seems to be required only by a minority of HTTPS servers, and due to its downsides,

SNI is enabled only if explicitly specified in the dodo::network::TLSContext::TLSContext constructor.

Setup Certification Authority

The source tree contains a simplistic CA install that allows to operate as a root CA. The installation uses intermediate CA to do the actual signing. The installation can create signed server and client certificates to be shared with their Subjects (including private key and passphrase). Alternatively, external identities can provide a CSR that can be signed - ot nor.

The root CA install is protected by a single master passphrase. The root CA and intermediate CA private keys are protected with a individual passphrases, which are stored as a (readonly) files, each protected by the master passphrase. No readable secrets are stored. It is crucial that the master passphrase is strong and is remembered or safely kept - once it is lost the install is lost as well.

The scripts to install are part of the source, under src/examples/tls/artefacts. This install uses the confd tool, so that must be present in the PATH, as well as the openssl bianry.

Copy config.yaml and customize the copy. The ca::root::directory entry specifies the installation directory for the root CA directory tree. The create-ca.sh script will ask for the master passphrase.

Passphrases are passed to the openssl tools through ENV vars, and ENV vars of any user are readable to the root user, at least during the time they exist (only when installed scripts are running), so one must either be root or trust root if any serious use is considered.

$ cp -p config.yaml myconfig.yaml
$ vi myconfig.yaml
$ ./configure.sh myconfig.yaml
$ ./ca_config/bin/create-ca.sh

The ca::root::directory from myconfig.yaml now contains the root CA with a self-signed certificate. Now create an intermediate CA. Intermediate CA's are used to sign CSR's. Specify a descriptive name for the intermediate CA.

$ cd [ca::root::directory]
$ bin/create-intermediate.sh

the intermediate CA is now created, along with its certificate that is signed by the root CA created earlier.

Create a server identity (private key + passphrase, signing request). Note that the common name is expected to be the FQDN of the server, but SAN (subject altnames) can be specified to widen the certificate's applicability. Examples of SAN entries are

• DNS:our.domain.org
• IP: 127.0.0.1
• IP: ::1

$ bin/create-server.sh

Alternatively, the subject can create its own certificate, and just send a CSR. In case a CSR is received, best put it in ca::root::directory/ext/servers or ca::root::directory/ext/servers depending on the certificate's intended use.

Either way, the CSR can now be signed:

$ intermediates/<intermediatename>/bin/sign-server-csr.sh <CSR file>

which will produce two files:

• ca/root/ext/servers|clients/<commonname>.cert.pem
• ca/root/ext/servers|clients/<commonname>.pkcs12

the former is the signed certificate, and the latter a PKCS12 file containing the signed certificate and the trust chain, both the intermediate and root certificates used to sign ().

<server commonname>.cert.pem to be returned to the server identity.

$ openssl s_server -accept 12345 -cert ca/root/ext/servers/localhost.cert.pem -CAfile ca/root/certs/ca.cert.pem -chainCAfile ca/root/intermediates/signer1/certs/ca-chain.cert.pem -key ca/root/ext/servers/localhost.key.pem
$ openssl s_client -showcerts -connect localhost:12345 -CAfile /etc/ssl/certs/dodo.pem

TCPListener / TCPServer

Developers create their own network protocols on top of TCP by sub-classing dodo::network::TCPServer and implement a request (reading) and response (handling + sending) mechanism of arbitrary complexity. The dodo::network::TCPListener is a dodo::threads::Thread, and once started will

• listen and accept TCP handshakes
• listen for socket events (data to be read,hangup,error to handle) and produces it as work to the pool of TCPServer instances.
• manage the pool of TCPServer worker threads, scale the number of TCPServer instances between a minimum and maximum depending on the amount of work queued for processing
• throttle the production of work by delaying (throttling) the TCPListener reading socket events, if the queue depth exceed its maximum and the maximum number of TCPServer have already been started.

As the dodo::network::TCPServer and dodo::network::TCPListener interfaces use dodo::network::BaseSocket, both do not depend on the socket being a regular or a TLS-secured socket.

The dodo::network::TCPListener uses the epoll_wait interface to wait for and read socket events in its run() method, which is executed a dedicated thread. Only if there is socket activity (new connections, data to be read, errors, shutdowns) will the dodo::network::TCPListener wake up, and read pollbatch socket events in one go (instead of waking up on each individual socket event). The dodo::network::TCPListener does not read data, it merely signals the pool of dodo::network::TCPServer there is data to be read through a std::condition_variable on which the TCPServer pool is sleeping.

The request-response paradigm comprises these steps

• A protocol handshake (not the TCP handshake, that will already have taken place), for example to verify clients speak the correct protocol or setup state-full data for the remainder of the connection. The handshake is implemented by overriding the virtual bool dodo::network::TCPServer::handShake(), which should be returning false if the handshake fails, in which case the dodo::network::TCPListener will clean up.
• Zero or more request-response cyles by overriding dodo::network::TCPServer::readSocket(). Note that the request data sent must be fully read within a single readSocket cycle, but if required a protocol can be created that reads across several requests (which would only serve a point if local RAM needs to be protected against very large request by applying streaming).
• A shutdown when the peer hangs up or the socket is/must be terminated due to errors. Override dodo::network::TCPServer::shutDown() when the dodo::network::TCPServer needs to clean things up.

Additionally, the devloper will need to override dodo::network::TCPServer::addServer() to provide a new instance of a dodo::network::TCPServer descendant so that dodo::network::TCPListner can spawn new servers.

The dodo::network::TCPListener has some configuration parameters that define its runtime behavior, which are bundled in the dodo::network::TCPListener::Params struct. These parameters can either be specified by C++ code or handed to a TCPListner instance by specifying a Config YAML node (which may thus appear anywhere in the YAML file). In the below example, the myapp.tcplistener node would be passed.

myapp:
  tcplistener:
    listen-address: 0.0.0.0
    listen-port: 1968
    scaling:
      min-servers: 2
      max-servers: 16
    sizing:
      max-connections: 5000
      send-buffer: 16384
      receive-buffer: 32768
    timeouts:
      send: 10
      receive: 10

name	dataype	default	purpose
listen-address	string	0.0.0.0	The address to listen on, may be a local ipv4 or an ipv6 address. 0.0.0.0 (ipv4) and :: (ipv6) imply IN_ADDRANY and will listen on all network interfaces.
listen-port	unsigned int	1968	The port to listen on.
min-servers	unsigned int	2	The minimum TCPServer threads in the pool.
max-servers	unsigned int	16	The maximum TCPServer threads in the pool.
max-connections	unsigned int	1000	The maximum number of connections (10-60000).
max-queue-depth	unsigned int	128	The maximum number of queued work items before throttling.
send-buffer	unsigned int	16384	The size of the send buffer for each socket.
receive-buffer	unsigned int	32768	The size of the receive buffer for each socket.
server-idle-ttl-s	unsigned int	300	The number of second a TCPServer is allowed to be idle before scaling down (if # TCPServers > min-severs).
poll-batch	unsigned int	128	The number of socket events transformed into TCPServer work in a single cycle.
listener-sleep-ms	unsigned int	1000	The number of milliseconds to wait for socket events per TCPListener iteration before re-looping, allowing to check if the TCPListener is requested to stop.
throttle-sleep-us	unsigned int	4000	The number of microseconds to stall the TCPListener in case max-queue-depth is reached.
cycle-max-throttles	unsigned int	40	The maximum number of throttles per listener-sleep-ms cycle.
stat-trc-interval-s	unsigned int	300	The number of seconds between writing status/performance messages to the log.
tcp-keep-alive	bool	false	If true, enable TCP keep alive on client sockets.

To highlight the purpose and effect of the parameters, the TCPListener loop roughly iterates as

while ( ! stopped ) {
  throttle if needed, at max cycle-max-throttles times throttle-sleep-us microseconds
  check if servers need to be added (when the queue size is not shrinking)
  wait-sleep listener-sleep-ms for 1 to poll-batch socket events
  if ( !timeout ) {
    for new-connection events, setup the sockets, queue the handshake
    for existing connections with events, queue the readSocket cycle
  }

The implicit throttling mechanism of the TCPListener protects the TCPServer pool against overloading, and will queue client data in the hosts receive buffers initially, and if they are full, clients will start to experience send latency up until their send timeout values. So the TCPListener will seek to maximize the sustained arrival rate of work against the configured capacity of the TCPServer pool, although, as the receive buffers and request queue size permit, it can handle intermediate burst that exceed it without additional latency.

Persistent data

SQLite wrapper

The classes in the dodo::persist::sqlite namespace simplify the use of SQLite.

#include <dodo.hpp>
#include <cstdio>

using namespace dodo;

int main() {
  int exit_code = 0;
  const std::string database_name = "mydb.sqlite";
  try {
    {
      // open existing or create new database
      persist::sqlite::Database db( database_name );

      // create a schema
      persist::sqlite::DDL schema( db );
      schema.prepare( "CREATE TABLE IF NOT EXISTS foo ( foo NOT NULL PRIMARY KEY)" );
      schema.execute();

      // setup an insert statement
      persist::sqlite::DML insert( db );
      insert.prepare( "INSERT INTO foo (foo) VALUES (?)" );
      insert.bind( 1, "insert1" );

      // start a transaction
      db.beginTransaction();
      insert.execute();

      // reset the query for re-execute with different value
      insert.reset(true);
      insert.bind( 1, "insert2" );
      insert.execute();

      db.commit();
      // other persist::sqlite::Database objects will now see the inserts

      // query and step the result set
      persist::sqlite::Query qry( db );
      qry.prepare( "select foo from foo order by foo" );
      while ( qry.step() ) {
        std::cout << qry.getText(0) << std::endl;
      }
    }
  }
  catch ( const std::exception &e ) {
    // as the db object is now destructed, any un-comitted transaction is
    // rolled back and the database is closed.
    std::cerr << e.what() << std::endl;
    exit_code = 1;
  }
  // delete the database file
  remove( database_name.c_str() );
  return exit_code;
}

KVStore

The dodo::persist::KVStore class is a simple key-value store backed by SQLite. Under multithreading, if each thread uses its own KVStore object - even though they all point to the same SQLite file - no explicit synchronization is required.

• The SQLite database (file) is initialized in WAL mode for performance.
• All key-value pairs are stored in a single table (kvstore).
• The value column can hold any datatype that SQLite supports.
• The modified column stores the (unix timestamp) of the last modification.
• The updates column stores the total number of times the value was updated (after first insert this is 0).

Suppose we require the hostname of a proxy server.

dodo::persist::KVStore store( "cm.db" );
std::string proxy_server = store.ensureWidthDefault( "proxy-server", "proxy.domain.nl" );

If the key proxy-server did not exist, it is now set to "proxy.domain.nl" in the store and that value is returned by dodo::persist::KVStore::ensureWithDefault. If it did exist, the ensureWidthDefault function retruns the value from the store (and ignores the default). If a default cannot be set by the code and the key is just expected to be there, one could do

dodo::persist::KVStore store( "cm.db" );
std::string proxy_server = "";
if ( store.getValue( "proxy-server", proxy_server ) ) {
  ...
} else throw std::runtime_error( "key not found" )

For bulk inserts (dodo::persist::KVStore::insertKey) or updates (dodo::persist::KVStore::setKey), be sure to call dodo::persist::KVStore::startTransaction before the modifications and dodo::persist::KVStore::commitTransaction (or dodo::persist::KVStore::rollbackTransaction) to speeds things up, as otherwise each modification will commit individually (this is seen to speed things up 1000x).

store.startTransaction();
for ( const auto &k : keys ) {
  store.insertKey( k, random_string( rand() % DATA_MAX_LENGTH ) );
}
store.commitTransaction();

The KVStore can be run as an in-memory database by opening the special file :memory:

dodo::persist::KVStore store( ":memory:" );

but its contents are lost when the store object closes (destructs). Refer to the SQLite documentation for more details.

Performance

The insertKey operations are enclosed between startTransaction / commitTransaction - all insertKey is comitted in one go. The setKey calls are individual commits. As a commit on persistent storage requires a physical write that has completed, the setKey speed is dominated by the write latency of the backing storage, as the huge difference in setKey speed below examplifies.

Intel Corei7 3.4GHz

storage	insertKey	getValue	setKey
memory	575,000/s	1,000,000/s	345,000/s
Samsung SSD 860	660,000/s	420,000/s	414/s
